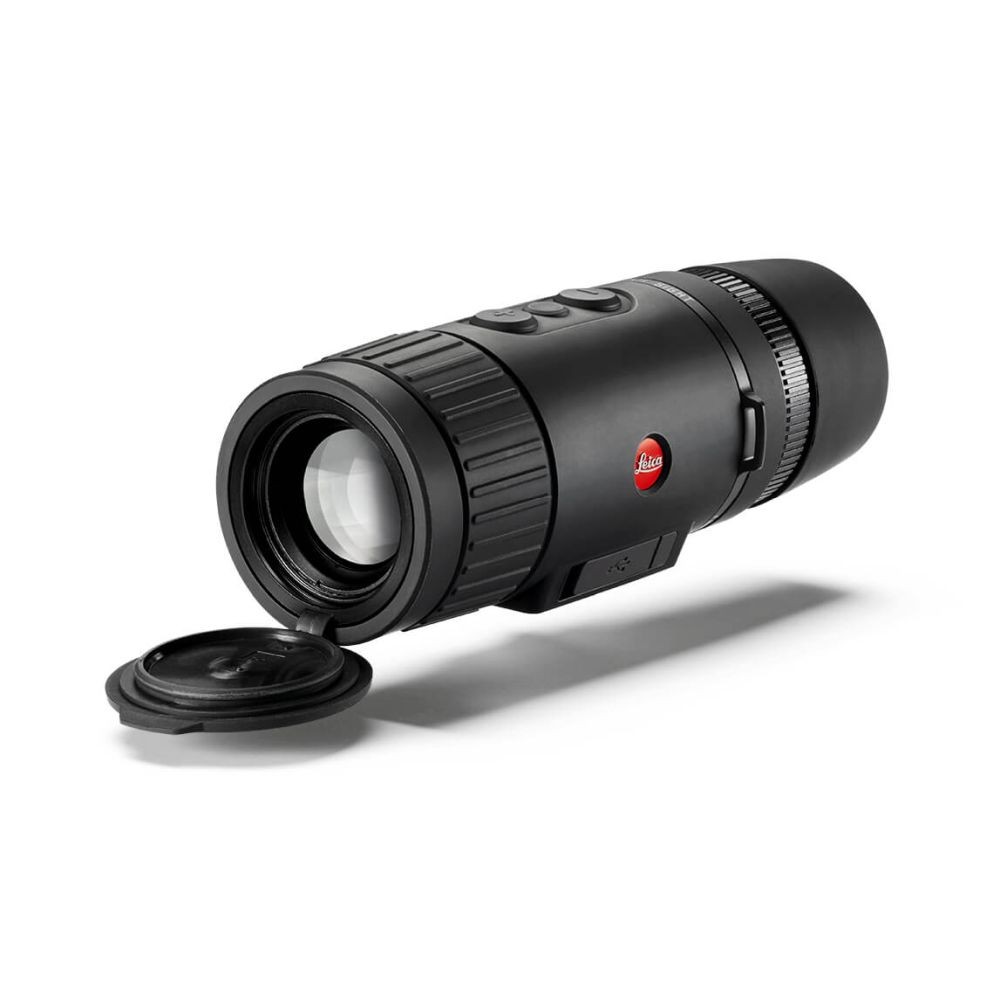

Leica Calonox Sight thermal imaging clip-on
Leica Calonox Sight thermal imaging clip-on
4 181 EUR

Leica Calonox Sight thermal imaging clip-on

Leica Calonox Sight thermal imaging clip-on
Leica Calonox Sight thermal imaging clip-on
Leica Calonox Sight thermal imaging clip-on
Leica Calonox Sight thermal imaging clip-on
- 42 mm adjustable focus

- 384x288 pixel senzor size

- pixelsize: 17 μm

- OLED screen with 1024x768 resolution

Please consult with legal authorities about the usability for hunting purposes!
Available for order
4 181 EUR
We recommend the following product(s) as accessories

Leica Sport Optics (Wetzlar) is presenting for the first time a thermal imaging device especially for hunters: the Leica Calonox. For market launch in late fall 2020 the Leica Calonox will be available in two versions: As a pure observation device - Leica Calonox "View" - and as an header device for mounting in conjunction with a riflescope - Leica Calonox "Sight".

Similar in design to conventional digital cameras, thermal imaging cameras detect infrared radiation as a heat signature that is not visible to the human eye.

With the new Leica Calonox thermal imaging cameras, the terrain can be searched for huntable or downed game in the dark or in difficult light conditions. The Leica Calonox models offer a large field of view with a high detection range and high-contrast imaging.




Thanks to their large sensor and high-resolution OLED display, both optics offer the highest quality observation. The ingenious design of the Leica Calonox models revolutionizes the thermal imaging market. The functional elements are extremely ergonomic and easy to manipulate. In addition, operation with just three buttons is intuitive, user-friendly and efficient.

Leica Calonox View: As an observation device

The Leica Calonox "View" offers a high recognition range, while the wide field of view is ideal for close-up work thanks to the large sensor (640x512 pixels) at 2.5x basic optical magnification. This model has a 42 mm lens and is extremely light at around 650 grams. A permanently installed rechargeable battery with a minimum operating time of 4 to 5 hours serves as the power supply.

Both models will be available from winter 2020.

Article number
Base magnification (x)
Picture resolution
Video resolution
Power supply
built-in Li-Ion battery
0.4 coll OLED 1024 x 768, Leica Image Optimization
2 years manufacturer's warranty
165 x 65 mm
PAL video out via USB-C
Field of view
15.5m / 100m
Lens system
42 mm focus distance
Data storage
Opcionális tartozékok
Rusan or Recknagel adapters
Video recording
Digital zoom
Image repetition frequency
50 Hz
Battery life
8-11 hour(s)
Field of view
8.9° x 6.7°
Weight (g)
Least magnification
Utmost magnification
Seeker monocular
Horizontal field of view (°)
Detection distance

Detection range: 2000 m (1.7x0.5 m) 2 pixel;
Recognition range: 700 m (1.7x0.5 m) 6 pixel;
Identification range: 350 m (1.7x0.5 m) 12 pixel

Other properties
Thread sizes: M52x0.75
384x288 pixel Vox szenzor, 17 µm pixel size
In the box
clip-on, cordura case, charging cable, lens cleaning cloth
Magnification interval (x)
1 – 1
Article No.
